⛏️ Mining & Construction Telehandler
Maverick
Maverick
MVT4010

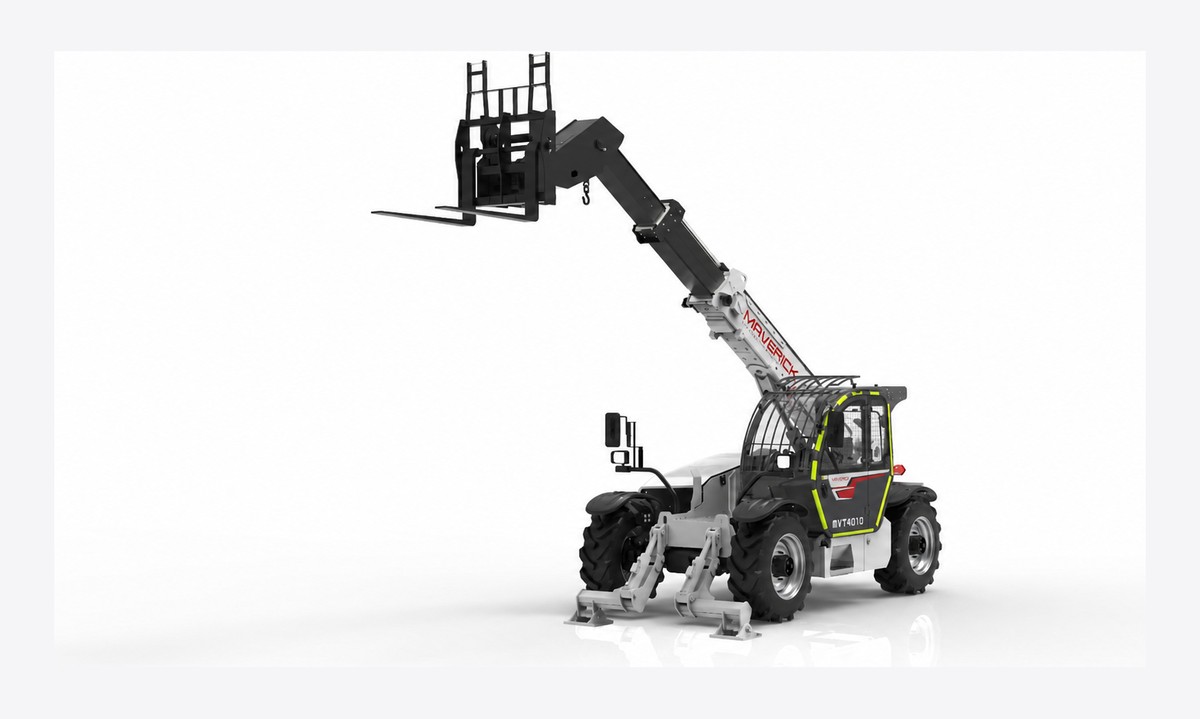

The Maverick MVT4010 is a mining and construction telehandler with 4,000 kg (8,820 lb) rated capacity, 9.65 m (31.7 ft) maximum lift height and 7.02 m maximum forward reach. Powered by a Cummins F3.8 90 kW diesel engine with hydrostatic 4x4 drive. Built by Maverick Material Handling in Cleburne, Texas.
4,000kg
Rated capacity
9.65m
Max lift height
7.0m
Max forward reach
Full specifications
All figures taken from the official Maverick MVT4010 catalogue. Verified, not estimated.
- Rated capacity
- 4,000 kg / 8,820 lb
- Max lift height
- 9.65 m / 31.7 ft
- Max forward reach
- 7,020 mm / 23.0 ft
- Engine
- Cummins F3.8 · Euro V
- Engine power
- 90 kW / 121 hp
- Drive
- 4x4 Hydrostatic
- Travel speed
- 35 km/h
- Operating weight
- 8,965 kg
- Steering modes
- Front · 4-wheel · Crab
- Country of manufacture
- United States
- Alternate designation
- MVT9.32
Underground miningConstructionIndustry
Other mining & construction models
Compare the full range side by side on the master spec table.
MVT4010 — questions
How much can the Maverick MVT4010 lift?
The MVT4010 has a rated capacity of 4,000 kg (8,820 lb) at a 600 mm load centre. Maximum lift height is 9.65 m (31.7 ft), with 7.0 m of maximum forward reach.
What engine is in the Maverick MVT4010?
A Cummins F3.8 diesel rated at 90 kW (121 hp), Euro V emissions. It drives a hydrostatic 4x4 transmission with wet-brake axles.
Is the MVT4010 suitable for underground mining?
Yes. The MVT4010 and the wider Maverick construction range were designed underground first — low profile, tight turning circle and sealed electrics.MVT4010 is specified for underground mining, construction, industry. Contact Maverick to confirm the attachment package for your application.
Where can I buy a Maverick MVT4010 in the United States?
Direct from Maverick Material Handling in Cleburne, Texas, or through the authorised dealer network across the Americas. Email sales@maverick-americas.com or call +1 903.546.9642 for a quotation and lead time.
Get a price on the MVT4010
Direct from the manufacturer. Cleburne, Texas. Shipping across the Americas.
