Maverick
Maverick
MVRT5018

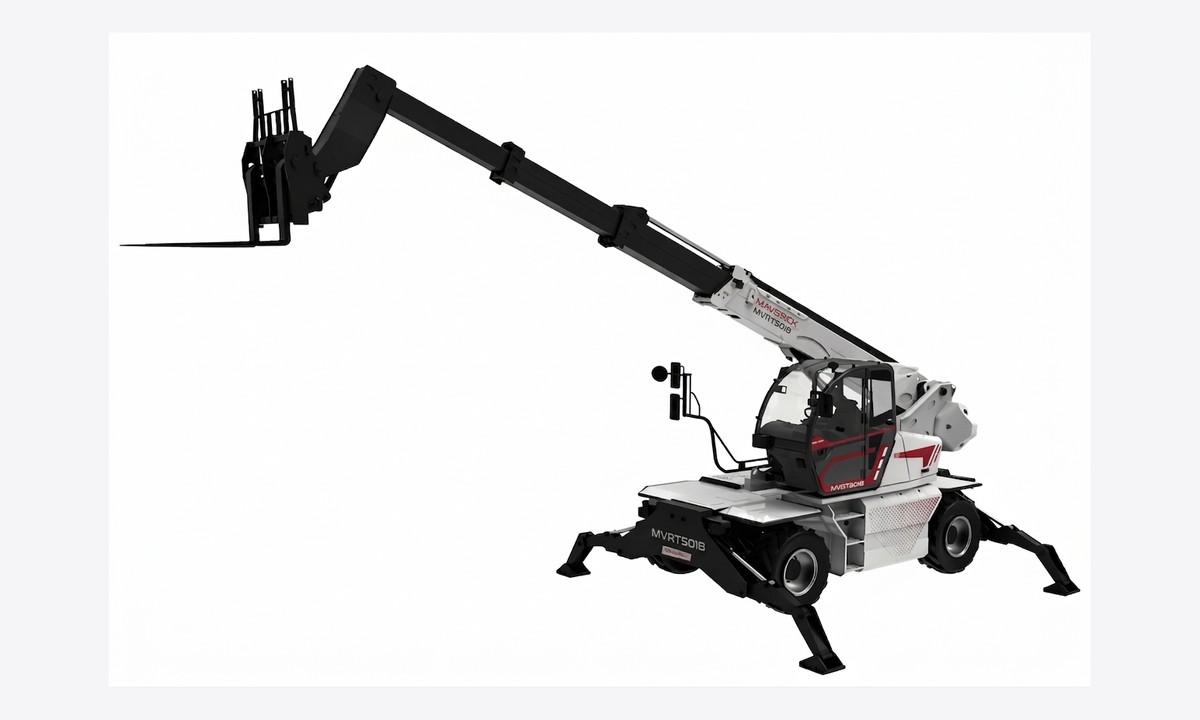

The Maverick MVRT5018 is a rotating telehandler with 360° continuous turret rotation with 5,000 kg (11,025 lb) rated capacity, 17.8 m (58.4 ft) maximum lift height and 15.10 m maximum forward reach. Powered by a Cummins QSF3.8 90 kW diesel engine with hydrostatic 4x4 drive. Built by Maverick Material Handling in Cleburne, Texas.
5,000kg
Rated capacity
17.8m
Max lift height
15.1m
Max forward reach
Full specifications
All figures taken from the official Maverick MVRT5018 catalogue. Verified, not estimated.
- Rated capacity
- 5,000 kg / 11,025 lb
- Max lift height
- 17.8 m / 58.4 ft
- Max forward reach
- 15,100 mm / 49.5 ft
- Engine
- Cummins QSF3.8 · Euro V
- Engine power
- 90 kW / 121 hp
- Turret rotation
- 360° continuous
- Drive
- 4x4 Hydrostatic
- Travel speed
- 35 km/h
- Operating weight
- 14,500 kg
- Steering modes
- Front · 4-wheel · Crab
- Country of manufacture
- United States
- Alternate designation
- MVRT11.58
ConstructionMiningSteel erection
Other rotating models
Compare the full range side by side on the master spec table.
MVRT6025
MVRT13.81
- Capacity 6,000 kg
- Lift height 24.7 m
- Forward reach 21.4 m
- Engine Cummins F3.8
- Rotation 360°
MVRT6030
Rotating · NEW
- Capacity 6,000 kg
- Lift height 29.9 m
- Forward reach 25.9 m
- Engine Cummins QSF3.8
- Rotation 360°

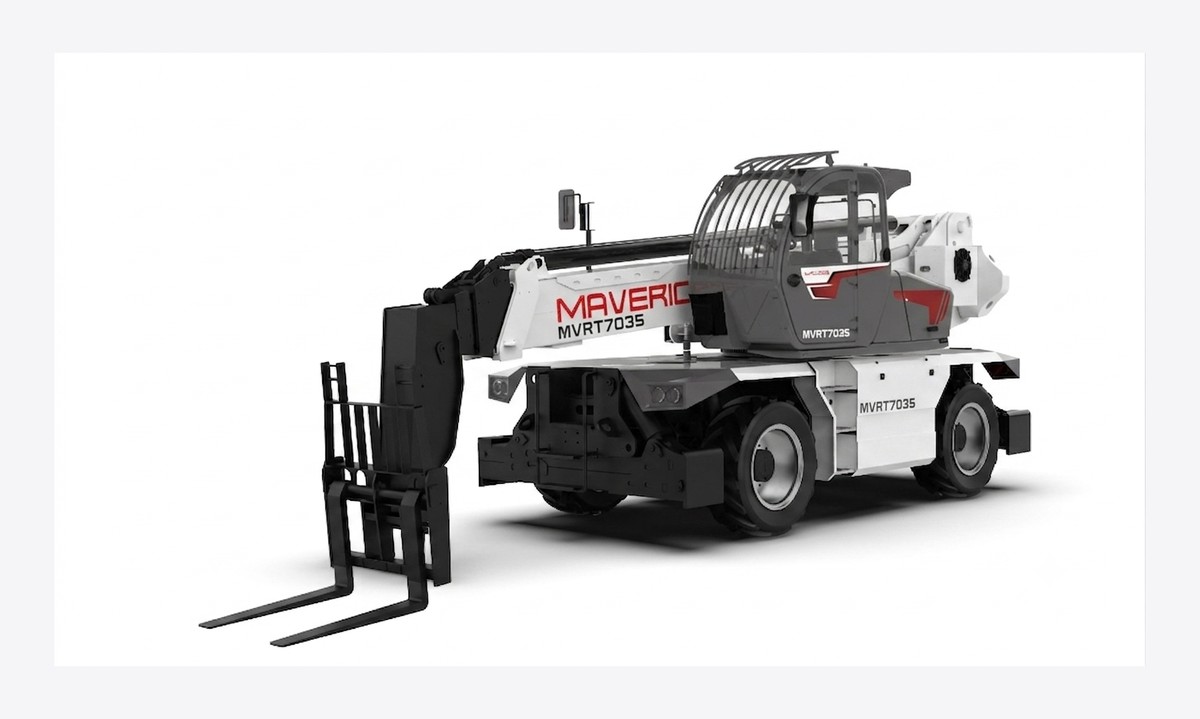

MVRT7035
MVRT15.114
- Capacity 7,000 kg
- Lift height 34.7 m
- Forward reach 28.0 m
- Engine Cummins F3.8
- Rotation 360°
MVRT5018 — questions
How much can the Maverick MVRT5018 lift?
The MVRT5018 has a rated capacity of 5,000 kg (11,025 lb) at a 600 mm load centre. Maximum lift height is 17.8 m (58.4 ft), with 15.1 m of maximum forward reach.
What engine is in the Maverick MVRT5018?
A Cummins QSF3.8 diesel rated at 90 kW (121 hp), Euro V emissions. It drives a hydrostatic 4x4 transmission with wet-brake axles.
Is the MVRT5018 suitable for farm work?
Yes. MVRT5018 is specified for construction, mining, steel erection. Contact Maverick to confirm the attachment package for your application.
Where can I buy a Maverick MVRT5018 in the United States?
Direct from Maverick Material Handling in Cleburne, Texas, or through the authorised dealer network across the Americas. Email sales@maverick-americas.com or call +1 903.546.9642 for a quotation and lead time.
Get a price on the MVRT5018
Direct from the manufacturer. Cleburne, Texas. Shipping across the Americas.
