MVRT6030

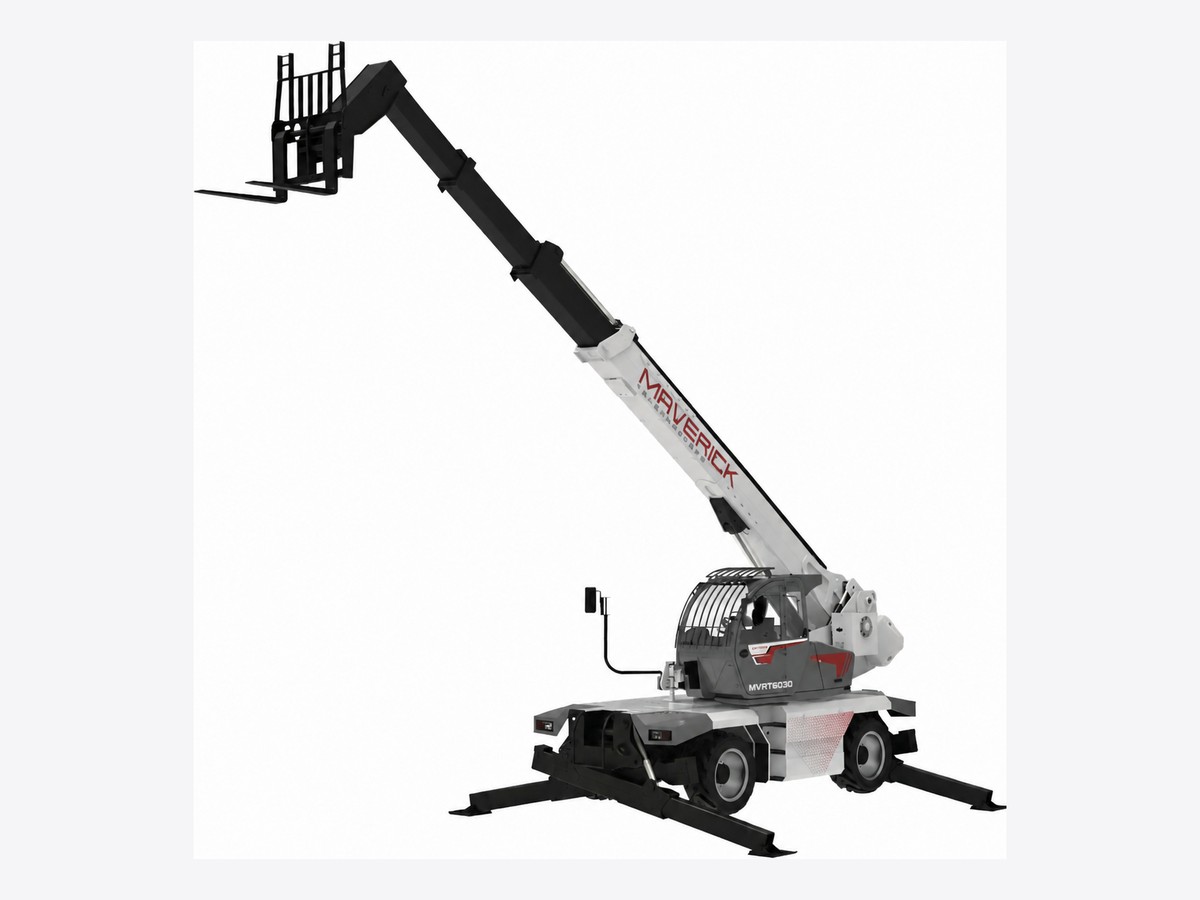

The Maverick MVRT6030 is a rotating telehandler with 360° continuous turret rotation with 6,000 kg (13,230 lb) rated capacity, 29.9 m (98.1 ft) maximum lift height and 25.90 m maximum forward reach. Powered by a Cummins QSF3.8 129 kW diesel engine with hydrostatic 4x4 drive. Built by Maverick Material Handling in Cleburne, Texas.
6,000kg
Rated capacity
29.9m
Max lift height
25.9m
Max forward reach
Full specifications
All figures taken from the official Maverick MVRT6030 catalogue. Verified, not estimated.
- Rated capacity
- 6,000 kg / 13,230 lb
- Max lift height
- 29.9 m / 98.1 ft
- Max forward reach
- 25,900 mm / 85.0 ft
- Reach at max height
- 3,600 mm
- Turret rotation
- 360° continuous
- Engine
- Cummins QSF3.8 · Euro V / Tier 4 Final
- Engine power
- 129 kW / 173 hp
- Max torque
- 620 Nm @ 1,500 rpm
- Drive
- Hydrostatic 4x4
- Steering modes
- 2WS · Crab · 4WS
- Travel speed
- 35 km/h
- Gradeability at full load
- 35%
- Operating weight
- 22,095 kg
- Length (w/o · with forks)
- 8160 / 9560 mm
- Width
- 2,500 mm
- Height
- 3,250 mm
- Ground clearance
- 400 mm
- Min. turning radius
- 4,500 mm
- Tyres
- 17.5R25 / 445/65-22.5
- Fuel tank
- 280 L
- Hydraulic tank
- 300 L
- Country of manufacture
- United States
MiningConstructionSteel erectionWind energy
Other rotating models
Compare the full range side by side on the master spec table.
MVRT5021
MVRT11.68
- Capacity 5,000 kg
- Lift height 20.6 m
- Forward reach 17.8 m
- Engine Cummins F3.8
- Rotation 360°
MVRT6025
MVRT13.81
- Capacity 6,000 kg
- Lift height 24.7 m
- Forward reach 21.4 m
- Engine Cummins F3.8
- Rotation 360°
MVRT7035
MVRT15.114
- Capacity 7,000 kg
- Lift height 34.7 m
- Forward reach 28.0 m
- Engine Cummins F3.8
- Rotation 360°
MVRT6030 — questions
How much can the Maverick MVRT6030 lift?
The MVRT6030 has a rated capacity of 6,000 kg (13,230 lb) at a 600 mm load centre. Maximum lift height is 29.9 m (98.1 ft), with 25.9 m of maximum forward reach.
What engine is in the Maverick MVRT6030?
A Cummins QSF3.8 diesel rated at 129 kW (173 hp), Euro V / Tier 4 Final emissions. It drives a hydrostatic 4x4 transmission with wet-brake axles.
Is the MVRT6030 suitable for farm work?
Yes. MVRT6030 is specified for mining, construction, steel erection, wind energy. Contact Maverick to confirm the attachment package for your application.
Where can I buy a Maverick MVRT6030 in the United States?
Direct from Maverick Material Handling in Cleburne, Texas, or through the authorised dealer network across the Americas. Email sales@maverick-americas.com or call +1 903.546.9642 for a quotation and lead time.
