⚙️ Heavy Capacity Telehandler
New
Maverick
Maverick
MVT7010

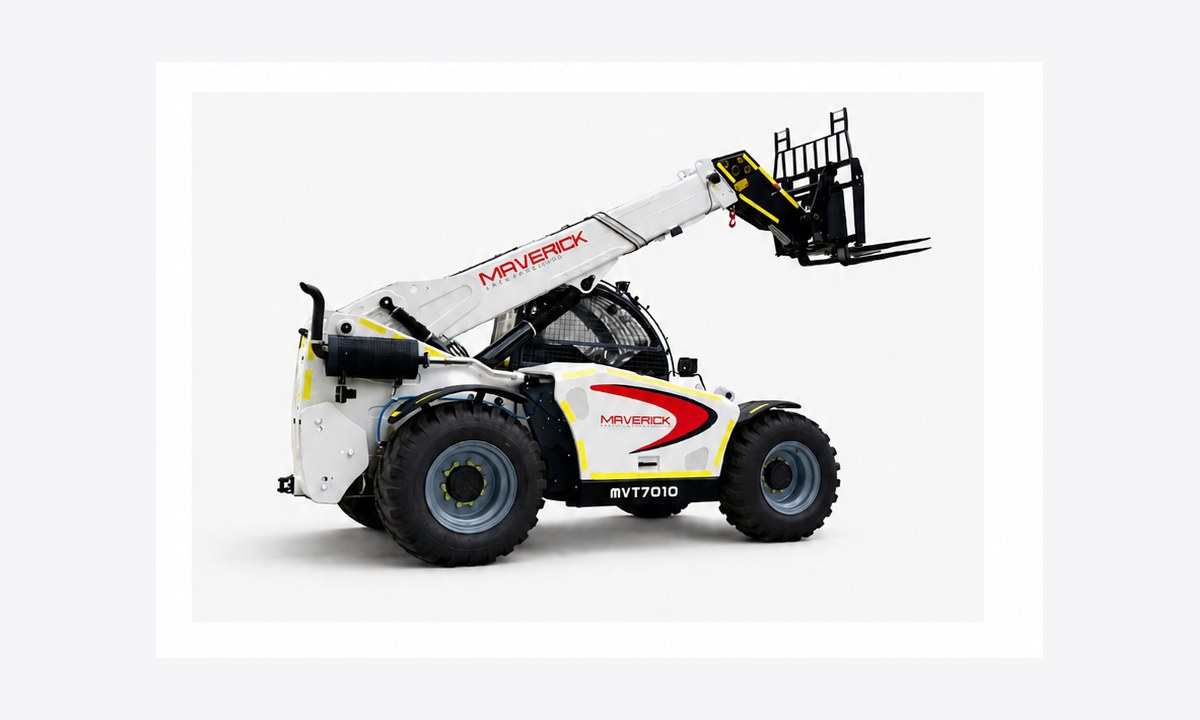

The Maverick MVT7010 is a heavy capacity telehandler with 6,500 kg (14,330 lb) rated capacity, 9.6 m (31.5 ft) maximum lift height and 5.40 m maximum forward reach. Powered by a Cummins QSB3.9 92 kW diesel engine with hydrostatic 4x4 drive. Built by Maverick Material Handling in Cleburne, Texas.
6,500kg
Rated capacity
9.6m
Max lift height
5.4m
Max forward reach
Full specifications
All figures taken from the official Maverick MVT7010 catalogue. Verified, not estimated.
- Rated capacity
- 6,500 kg / 14,330 lb
- Max lift height
- 9.6 m / 31.5 ft
- Max forward reach
- 5,400 mm
- Capacity at max height
- 3,500 kg
- Capacity at max reach
- 2,500 kg
- Max effective working distance
- 5,250 mm
- Load centre distance
- 600 mm
- Boom angle range
- -4° to 75°
- Engine
- Cummins QSB3.9 · Tier 3
- Engine power
- 92 kW / 123 hp
- Max torque
- 480 Nm @ 1300–1600 rpm
- System voltage
- 24 V
- Drive
- Hydrostatic 4x4
- Steering modes
- Front · Crab · 4-wheel
- Travel speed
- 35 km/h
- Gradeability at full load
- 30%
- Operating weight
- 11,750 kg
- Length (w/o · with forks)
- 6015 / 7415 mm
- Width
- 2,460 mm
- Height
- 2,650 mm
- Wheelbase
- 2,000 mm
- Ground clearance
- 450 mm
- Departure angle
- 35°
- Min. turning radius
- 4,300 mm
- Chassis levelling
- ±7°
- Tyres
- 17.5-25TL
- Country of manufacture
- United States
AgricultureIndustryMiningConstruction
Load chart
Rated capacity across the working envelope, 600 mm load centre, machine level on firm ground with forks. Always confirm against the load chart fitted to the machine.
| Capacity | Capacity (lb) | Lift height | Forward reach |
|---|---|---|---|
| 6,500 kg | 14,330 lb | 6.1 m | 1.0 m |
| 5,000 kg | 11,023 lb | 7.4 m | 2.0 m |
| 4,000 kg | 8,818 lb | 8.3 m | 3.0 m |
| 3,500 kg | 7,716 lb | 8.9 m | 4.0 m |
| 3,000 kg | 6,614 lb | 9.2 m | 4.6 m |
| 2,000 kg | 4,409 lb | 9.6 m | 5.4 m |
Other heavy capacity models
Compare the full range side by side on the master spec table.
MVT7010 — questions
How much can the Maverick MVT7010 lift?
The MVT7010 has a rated capacity of 6,500 kg (14,330 lb) at a 600 mm load centre. At its maximum lift height of 9.6 m it still carries 3,500 kg, and at full forward reach it carries 2,500 kg.
What engine is in the Maverick MVT7010?
A Cummins QSB3.9 diesel rated at 92 kW (123 hp), Tier 3 emissions. It drives a hydrostatic 4x4 transmission with wet-brake axles.
Is the MVT7010 suitable for underground mining?
Yes. MVT7010 is specified for agriculture, industry, mining, construction. Contact Maverick to confirm the attachment package for your application.
Where can I buy a Maverick MVT7010 in the United States?
Direct from Maverick Material Handling in Cleburne, Texas, or through the authorised dealer network across the Americas. Email sales@maverick-americas.com or call +1 903.546.9642 for a quotation and lead time.
